Bubble

class discopy.monoidal.Bubble(inside, dom=None, cod=None, **params)

Bases: Bubble, Box

Bubble in a monoidal diagram, i.e. a unary operator on homsets.

Parameters:

• inside (discopy.monoidal.Diagram) – The diagram inside the bubble.

• dom (discopy.monoidal.Ty, optional) – The domain of the bubble, default is inside.dom.

• cod (discopy.monoidal.Ty, optional) – The codomain of the bubble, default is inside.cod.

Examples

>>> x, y = Ty('x'), Ty('y')
>>> f, g = Box('f', x, y ** 3), Box('g', y, y @ y)
>>> d = (f.bubble(dom=x @ x, cod=y) >> g).bubble()

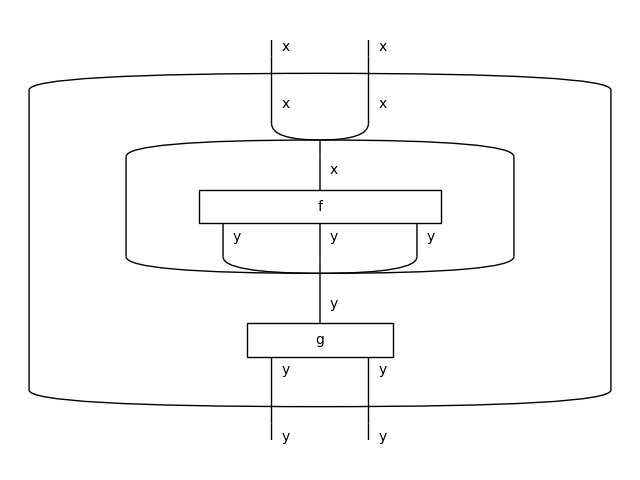

>>> d.draw(path='docs/_static/imgs/monoidal/bubble-example.png')

downgrade()

Downcasting to discopy.monoidal.Bubble.
