Diagram#

class discopy.hypergraph.Diagram(dom, cod, boxes, wires, spider_types=None)[source]#

Bases: Arrow

Diagram in a hypergraph category.

Parameters:

Note

The wires go from ports to spiders, they are given as a list of length:

len(dom) + sum(len(box.dom) + len(box.cod) for box in boxes) + len(cod)

The values themselves don’t matter, they are simply labels for the spiders. We must have len(types) >= len(set(wires)), the spiders that don’t appear as the target of a wire are scalar spiders, i.e. with zero legs.

Abstractly, a hypergraph diagram can be seen as a cospan for the boundary:

range(len(dom)) -> range(n_spiders) <- range(len(cod))

together with a cospan for each box in boxes:

range(len(box.dom)) -> range(n_spiders) <- range(len(box.cod))

Composition of two hypergraph diagram is given by the pushout of the span:

range(self.n_spiders) <- range(len(self.cod)) -> range(other.n_spiders)

Examples

>>> x, y, z = types("x y z")

>>> assert Id(x @ y @ z).n_spiders == 3
>>> assert Id(x @ y @ z).wires == [0, 1, 2, 0, 1, 2]

>>> assert Swap(x, y).n_spiders == 2
>>> assert Swap(x, y).wires == [0, 1, 1, 0]

>>> assert Spider(1, 2, x @ y).n_spiders == 2
>>> assert Spider(1, 2, x @ y).wires == [0, 1, 0, 1, 0, 1]
>>> assert Spider(0, 0, x @ y @ z).n_spiders == 3
>>> assert Spider(0, 0, x @ y @ z).wires == []

>>> f, g = Box('f', x, y), Box('g', y, z)

>>> assert f.n_spiders == g.n_spiders == 2
>>> assert f.wires == g.wires == [0, 0, 1, 1]

>>> assert (f >> g).n_spiders == 3
>>> assert (f >> g).wires == [0, 0, 1, 1, 2, 2]

>>> assert (f @ g).n_spiders == 4
>>> assert (f @ g).wires == [0, 1, 0, 2, 1, 3, 2, 3]
property wires#

The wires of a diagram, i.e. a map from ports to spiders.

property box_wires#

The wires connecting the boxes of a hypergraph diagram.

Returns a list of length len(self.boxes) such that:

dom_wires, cod_wires = self.box_wires[i]
len(dom_wires) == len(box.dom) and len(cod_wires) == len(box.cod)

for box = self.boxes[i].

property ports#

The ports in a diagram.

Examples

>>> x, y, z = types("x y z")
>>> f, g = Box('f', x, y @ y), Box('g', y @ y, z)
>>> for port in (f >> g).ports: print(port)
Node('input', i=0, obj=Ob('x'))
Node('dom', depth=0, i=0, obj=Ob('x'))
Node('cod', depth=0, i=0, obj=Ob('y'))
Node('cod', depth=0, i=1, obj=Ob('y'))
Node('dom', depth=1, i=0, obj=Ob('y'))
Node('dom', depth=1, i=1, obj=Ob('y'))
Node('cod', depth=1, i=0, obj=Ob('z'))
Node('output', i=0, obj=Ob('z'))
property spider_types#

List of types for each spider.

property n_spiders#

The number of spiders in a hypergraph diagram.

property scalar_spiders#

The zero-legged spiders in a hypergraph diagram.

then(other)[source]#

Composition of two hypergraph diagrams, i.e. their pushout().

tensor(other=None, *rest)[source]#

Tensor of two hypergraph diagrams, i.e. their disjoint union.

dagger()[source]#

Dagger of a hypergraph diagram, called with [::-1].

Examples

>>> x, y, z = types('x y z')
>>> f, g = Box('f', x, y), Box('g', y, z)
>>> assert (f >> g)[::-1] == g[::-1] >> f[::-1]
>>> assert Spider(1, 2, x @ y)[::-1] == Spider(2, 1, x @ y)
property is_monogamous#

Checks monogamy, i.e. each input connects to exactly one output, formally whether self.wires induces a bijection:

len(self.dom) + sum(len(box.dom) for box in boxes)
== self.n_spiders - len(self.scalar_spiders)
== sum(len(box.cod) for box in boxes) + len(self.dom)

In that case, the diagram actually lives in a traced category.

Examples

>>> x, y = types(" x y")
>>> f = Box('f', x, y)
>>> assert f.is_monogamous
>>> assert (f >> f[::-1]).is_monogamous

>>> assert Spider(0, 0, x).is_monogamous

>>> cycle = Cap(x, x) >> Id(x) @ (f >> f[::-1]) >> Cup(x, x)
>>> assert cycle.is_monogamous

>>> assert not f.transpose().is_monogamous
>>> assert not Cup(x, x).is_monogamous
>>> assert not Spider(1, 2, x).is_monogamous
property is_bijective#

Checks bijectivity, i.e. each spider is connected to two or zero ports. In that case, the diagram actually lives in a compact-closed category, i.e. it can be drawn using only swaps, cups and caps.

Examples

>>> x, y = types("x y")
>>> f = Box('f', x, y)
>>> assert f.is_bijective and f.transpose().is_bijective
>>> assert Cup(x, x).is_bijective and Cap(x, x).is_bijective
>>> assert Spider(0, 0, x).is_bijective
>>> assert not Spider(1, 2, x).is_bijective
property bijection#

Bijection between ports.

Examples

>>> x, y = types("x y")
>>> f = Box('f', x, y)
>>> list(zip(f.wires, f.bijection))
[(0, 1), (0, 0), (1, 3), (1, 2)]
property is_progressive#

Checks progressivity, i.e. wires are monotone w.r.t. box index. If the diagram is progressive, monogamous and it doesn’t have any scalar spiders, then it actually lives in a symmetric monoidal category, i.e. it can be drawn using only swaps.

Examples

>>> x, y = types("x y")
>>> f = Box('f', x, y)
>>> assert f.is_progressive
>>> assert (f >> f[::-1]).is_progressive

>>> cycle = Cap(x, x) >> Id(x) @ (f >> f[::-1]) >> Cup(x, x)
>>> assert not cycle.is_progressive

>>> assert not Cup(x, x).is_progressive
make_bijective()[source]#

Introduces discopy.rigid.Spider boxes to make self bijective.

>>> spider = Spider(1, 2, Ty('x')).make_bijective()
>>> assert spider.boxes == [rigid.Spider(3, 0, Ty('x'))]
>>> assert spider.wires == [0, 0, 1, 2, 1, 2]
make_monogamous()[source]#

Introduces discopy.rigid.Cup and discopy.rigid.Cap boxes to make self monogamous.

>>> x = Ty('x')
>>> Cap(x, x).make_monogamous()
Diagram(Ty(), Ty('x', 'x'), [Cap(Ty('x'), Ty('x'))], [0, 1, 0, 1])
>>> Cup(x, x).make_monogamous()
Diagram(Ty('x', 'x'), Ty(), [Cup(Ty('x'), Ty('x'))], [0, 1, 0, 1])
>>> spider = Spider(2, 1, x).make_monogamous()
>>> assert spider.boxes == [rigid.Cap(x, x), rigid.Spider(3, 0, x)]
>>> assert spider.wires == [0, 1, 2, 3, 0, 1, 2, 3]
make_progressive()[source]#

Introduce discopy.rigid.Cup and discopy.rigid.Cap to make self progressive.

Examples

>>> trace = lambda d:\
...     Cap(d.dom, d.dom) >> Id(d.dom) @ d >> Cup(d.dom, d.dom)
>>> x = Ty('x')
>>> f = Box('f', x, x)
>>> diagram = trace(f).make_progressive()
>>> assert diagram.boxes == [rigid.Cap(x, x), f, rigid.Cup(x, x)]
>>> assert diagram.wires == [0, 1, 0, 2, 2, 1]

>>> g = Box('g', x @ x, x @ x)
>>> assert trace(g).make_progressive().boxes\
...     == [rigid.Cap(x, x), rigid.Cap(x, x),
...         g,
...         rigid.Cup(x, x), rigid.Cup(x, x)]
downgrade()[source]#

Downgrade hypergraph diagram to discopy.rigid.Diagram.

Examples

>>> x = Ty('x')
>>> v = Box('v', Ty(), x @ x)
>>> print((v >> Swap(x, x) >> v[::-1]).downgrade())
v >> Swap(x, x) >> v[::-1]
>>> print((Id(x) @ Swap(x, x) >> v[::-1] @ Id(x)).downgrade())
Id(x) @ Swap(x, x) >> v[::-1] @ Id(x)
static upgrade(old)[source]#
>>> x, y = types("x y")
    >>> back_n_forth = lambda d: Diagram.upgrade(d.downgrade())
>>> for d in [Spider(0, 0, x), Spider(2, 3, x), Spider(1, 2, x @ y)]:
...     assert back_n_forth(d) == d
spring_layout(seed=None, k=None)[source]#

Computes planar position using a force-directed layout.

draw(seed=None, k=0.25, path=None)[source]#

Draw a hypegraph diagram.

Examples

>>> x, y, z = types('x y z')
>>> f = Box('f', x, y @ z)
>>> f.draw(
...     path='docs/_static/imgs/hypergraph/box.png', seed=42)
../_images/box.png

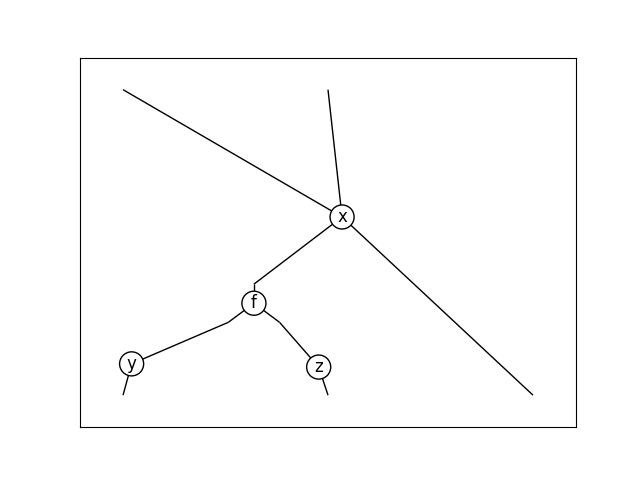

>>> (Spider(2, 2, x) >> f @ Id(x)).draw(
...     path='docs/_static/imgs/hypergraph/diagram.png', seed=42)
../_images/diagram.png
transpose(left=False)[source]#
>>> a, b = Ty('a'), Ty('b')
>>> double_snake = Id(a @ b).transpose()
>>> two_snakes = Id(b).transpose() @ Id(a).transpose()
>>> double_snake == two_snakes
False
>>> *_, two_snakes_nf = monoidal.Diagram.normalize(two_snakes)
>>> assert double_snake == two_snakes_nf
>>> f = Box('f', a, b)

>>> a, b = Ty('a'), Ty('b')
>>> double_snake = Id(a @ b).transpose(left=True)
>>> snakes = Id(b).transpose(left=True) @ Id(a).transpose(left=True)
>>> double_snake == two_snakes
False
>>> *_, two_snakes_nf = monoidal.Diagram.normalize(
...     snakes, left=True)
>>> assert double_snake == two_snakes_nf
>>> f = Box('f', a, b)
caps#

alias of Cap

cups#

alias of Cup

id#

alias of Id

spiders#

alias of Spider

swap#

alias of Swap
